| Model | detail | Description and functions | |
|---|---|---|---|

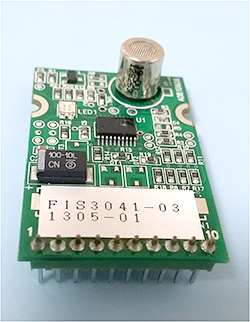

| FIS3000 스마트센서 모듈 |
가스 누출 검지,
|
* Power supply VDD : DC5.0ｖ±5％ * Average current consumption : 35mA * Rush current : 1A (during 0.17 msec every 5 m/sec) FIS3000 시리즈는 스마트센서모듈로써 유럽기준에 맞추어 제작된 스탠다드 제품입니다. 현재 라인업 ( 가스경보사양, 가스모니터사양)에 대해서는 아래의 pdf 파일을 확인하시기 바랍니다. |
 fis3000  WITH CASE : 방수몰딩처리 |
| CO2 | A051020 | CO2 sensor evaluation modules * Power supply: 5V DC * Analogue output: 0 to 1V or 0 to 5V * Alarm concentration: 1600ppm of |
 |
| -AQ6A-01 | -AQ6A-01: CO2 only, output 0 to 1V | ||
| -AQ6A-02 | -AQ6A-02: CO2 only, output 0 to 5V | ||
| -AQ6B-01 | -AQ6B-01: CO2 and H2, output 0 to 1V |
||
| -AQ6B-02 | -AQ6B-02: CO2 and H2, output 0 to 5V |
||
| Ozone |  A051020-SP61-1 -SP61-2 |
Ozone sensor evaluation module * Power supply: 5V DC * Analogue output: 0 to 1V or 0 to 5V * Alarm concentration: -SP61-01: Output 0 to 1V -SP61-02: Output 0 to 5V |
 |
| A051020 -SP61-01F -SP61-02F |
Ozone monitor * Power supply: 5V DC * Analogue output: 0 to 1V or 0 to 5V * Alarm concentration: -SP61-01F: Output 0 to 1V -SP61-02F: Output 0 to 5V |
 |
|
| 공기청정기용 모듈 | A01020 (SP3S 탑재) | * Compact design * Low power consumption * Output: 0 to 5V DC * 3 wired connector attached (10cm) |
 |
